supernovas::SolarSystemSource Class Reference

An abstract class of a source in the Solar-system. More...

#include <supernovas.h>

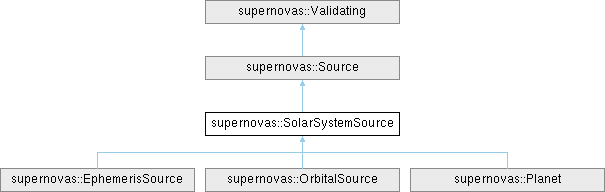

Inheritance diagram for supernovas::SolarSystemSource:

Public Member Functions
Geometric	geometric_at (const Time &time, enum novas_accuracy accuracy=NOVAS_FULL_ACCURACY) const
Coordinate	helio_distance (const Time &time) const
	Returns the heliocentric distance of a Solar-system source at the specified time of observation.
ScalarVelocity	helio_rate (const Time &time) const
	Returns the heliocentric rate of recession of a Solar-system source at the specified time of observation.
double	solar_illumination (const Frame &frame) const
	Returns the fraction [0.0:1.0] of the Solar-system source that appears illuminated by the Sun when viewed from a given observing frame, assuming that the source has a spheroidal shape.
double	solar_power (const Time &time) const
	Returns the typical incident Solar power on the illuminated side of this Solar-system object.
Public Member Functions inherited from supernovas::Source
virtual	~Source ()
const struct novas_object *	_novas_object () const
	Returns a pointer to the NOVAS C novas_object data structure that stores data internally.
Angle	angle_to (const Source &source, const Frame &frame) const
	Returns the angular separation of this source from another source, for the given observer location and time of observation.
Apparent	apparent_in (const Frame &frame) const
	Returns the apparent position of a source (if possible), or else an invalid position.
virtual const Source *	copy () const =0
	Returns a pointer to a newly allocated copy of this instance.
EquatorialTrack	equatorial_track (const Frame &frame, const Interval &range) const
	Returns the short-term equatorial trajectory of this source on the observer's sky, which can be used for extrapolating its apparent position in the near-term to avoid the repeated full-fledged position calculation, which may be expensive.
EquatorialTrack	equatorial_track (const Frame &frame, double range_seconds=Unit::hour) const
	Returns the short-term equatorial trajectory of this source on the observer's sky, which can be used for extrapolating its apparent position in the near-term to avoid the repeated full-fledged position calculation, which may be expensive.
Geometric	geometric_in (const Frame &frame, enum novas_reference_system system=NOVAS_TOD) const
	Returns the geometric position of a source (if possible), or else an invalid position.
HorizontalTrack	horizontal_track (const Frame &frame, RefractionModel ref=NULL, const Weather &weather=Weather::standard()) const
	Returns the short-term horizontal trajectory of this source on the observer's sky, which can be used for extrapolating its apparent position in the near-term to avoid the repeated full-fledged position calculation, which may be expensive.
Angle	moon_angle (const Frame &frame) const
	Returns the angular separation of this source from the Moon, for the given observer location and time of observation.
std::string	name () const
	Returns the name given to this source at instantiation.
Time	rises_above (const Angle &el, const Frame &frame, RefractionModel ref=NULL, const Weather &weather=Weather::standard()) const
	Returns the time when the source rises above the specified elevation next for an observer located on or near Earth's surface, or else std::nullopt if the observer is not near Earth's surface.
Time	sets_below (const Angle &el, const Frame &frame, RefractionModel ref=NULL, const Weather &weather=Weather::standard()) const
	Returns the time when the source sets below the specified elevation next for an observer located on or near Earth's surface, or else std::nullopt if the observer is not near Earth's surface.
Angle	sun_angle (const Frame &frame) const
	Returns the angular separation of this source from the Sun, for the given observer location and time of observation.
virtual std::string	to_string () const =0
Time	transits_in (const Frame &frame) const
	Returns the time when the source transits for an observer located on or near Earth's surface, or else std::nullopt if the observer is not near Earth's surface.
enum novas_object_type	type () const
	Returns the type of this source.
Public Member Functions inherited from supernovas::Validating
bool	is_valid () const
	Returns the previously set 'valid' stae of the implementing instance.
	operator bool () const
	Objects that implement Validating can be used in conditionals directly, without explicitly calling is_valid().

Protected Member Functions
	SolarSystemSource ()
Protected Member Functions inherited from supernovas::Source
	Source ()
	stored data on source
Protected Member Functions inherited from supernovas::Validating
	Validating ()
	dummy constructor;

Additional Inherited Members
Static Public Member Functions inherited from supernovas::Source
static void	set_case_sensitive (bool value)
	Enables or disabled case-sensitive treatment of source names.
Protected Attributes inherited from supernovas::Source
struct novas_object	_object = {}
Protected Attributes inherited from supernovas::Validating
bool	_valid = false
	the state variable.

Detailed Description

An abstract class of a source in the Solar-system.

See also

Planet, EphemerisSource, OrbitalSource

Constructor & Destructor Documentation

SolarSystemSource()

supernovas::SolarSystemSource::SolarSystemSource ( )

inlineprotected

Referenced by supernovas::EphemerisSource::EphemerisSource(), supernovas::OrbitalSource::OrbitalSource(), and supernovas::Planet::Planet().

Member Function Documentation

geometric_at()

Geometric supernovas::SolarSystemSource::geometric_at	(	const Time &	time,
		enum novas_accuracy	accuracy = NOVAS_FULL_ACCURACY ) const

References NOVAS_FULL_ACCURACY.

helio_distance()

Coordinate supernovas::SolarSystemSource::helio_distance

(

const Time &

time

)

const

Returns the heliocentric distance of a Solar-system source at the specified time of observation.

Parameters

Time of observation and astronomical timescales

astrometric time of observation

Returns

heliocentric distance of source at the specified time

See also

helio_rate(), solar_power()

References supernovas::Source::_object, supernovas::Unit::au, supernovas::Time::jd(), novas_helio_dist(), and NOVAS_TDB.

helio_rate()

ScalarVelocity supernovas::SolarSystemSource::helio_rate

(

const Time &

time

)

const

Returns the heliocentric rate of recession of a Solar-system source at the specified time of observation.

Parameters

Time of observation and astronomical timescales

astrometric time of observation

Returns

rate of recession from the Sun at the specified time

See also

helio_distance()

References supernovas::Source::_object, supernovas::Unit::au, supernovas::Unit::day, supernovas::Time::jd(), novas_helio_dist(), and NOVAS_TDB.

solar_illumination()

double supernovas::SolarSystemSource::solar_illumination

(

const Frame &

frame

)

const

Returns the fraction [0.0:1.0] of the Solar-system source that appears illuminated by the Sun when viewed from a given observing frame, assuming that the source has a spheroidal shape.

Parameters

Observing frames

observing frame (observer location and time of observation)

Returns

the fraction [0.0:1.0] that appears illuminated by the Sun from the observer's point of view.

See also

solar_power()

References supernovas::Frame::_novas_frame(), supernovas::Source::_object, and novas_solar_illum().

solar_power()

double supernovas::SolarSystemSource::solar_power

(

const Time &

time

)

const

Returns the typical incident Solar power on the illuminated side of this Solar-system object.

The actual Solar power may vary due to fluctuations of the Solar output.

Parameters

Time of observation and astronomical timescales

astrometric time of observation.

Returns

[W/m²] Typical incident Solar power.

See also

helio_distance(), solar_illumination()

References supernovas::Source::_object, supernovas::Time::jd(), novas_solar_power(), and NOVAS_TDB.
