Spherical coordinates (longitude, latitude), representing a direction on sky. More...

#include <supernovas.h>

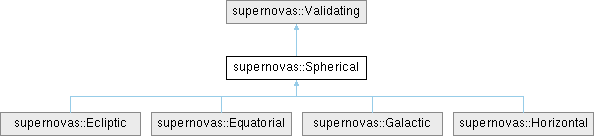

Inheritance diagram for supernovas::Spherical:

Public Member Functions
	Spherical (const Angle &longitude, const Angle &latitude)
	Instantiates new spherical coordinates with the specified components.
	Spherical (const std::string &longitude, const std::string &latitude)
	Instantiates spherical coordinates with the specified string representations of the longitude and latitude coordinates, optionally specifying a system and a distance if needed.
	Spherical (double longitude_rad, double latitude_rad)
	Instantiates new spherical coordinates with the specified components.
virtual	~Spherical ()
const Angle &	latitude () const
	Returns the latitude coordinate as an angle.
const Angle &	longitude () const
	Returns the longitude coordinate as an angle.
virtual std::string	to_string (enum novas_separator_type separator=NOVAS_SEP_UNITS_AND_SPACES, int decimals=3) const
	Returns a string representation of these spherical coordinates in DMS format, optionally specifying the type of separator to use and the precision to print.
Position	xyz (const Coordinate &distance) const
	Returns the cartesian position vector corresponding to these spherical coordinates.
Public Member Functions inherited from supernovas::Validating
bool	is_valid () const
	Returns the previously set 'valid' stae of the implementing instance.
	operator bool () const
	Objects that implement Validating can be used in conditionals directly, without explicitly calling is_valid().

Protected Member Functions
	Spherical ()
	Instantiates invalid spherical coordinates.
Angle	distance_to (const Spherical &other) const
	Returns the angular distance of these spherical coordiantes to/from the specified other spherical coordinates.
bool	equals (const Spherical &other, double precision) const
Protected Member Functions inherited from supernovas::Validating
	Validating ()
	dummy constructor;

Additional Inherited Members
Protected Attributes inherited from supernovas::Validating
bool	_valid = false
	the state variable.

Detailed Description

Spherical coordinates (longitude, latitude), representing a direction on sky.

See also: Position, Equatorial, Ecliptic, Galactic, Horizontal

Constructor & Destructor Documentation

◆ Spherical() [1/4]

supernovas::Spherical::Spherical ( )

inlineprotected

Instantiates invalid spherical coordinates.

Referenced by supernovas::Ecliptic::Ecliptic(), supernovas::Ecliptic::Ecliptic(), supernovas::Equatorial::Equatorial(), supernovas::Equatorial::Equatorial(), supernovas::Equatorial::Equatorial(), supernovas::Galactic::Galactic(), supernovas::Galactic::Galactic(), supernovas::Galactic::Galactic(), supernovas::Horizontal::Horizontal(), supernovas::Horizontal::Horizontal(), Spherical(), Spherical(), distance_to(), and equals().

◆ ~Spherical()

virtual supernovas::Spherical::~Spherical ( )

inlinevirtual

◆ Spherical() [2/4]

supernovas::Spherical::Spherical	(	double	longitude_rad,
		double	latitude_rad )

Instantiates new spherical coordinates with the specified components.

Parameters

longitude_rad	[rad] longitude coordinate
latitude_rad	[rad] latitude coordinate

References supernovas::Validating::_valid, and supernovas::Constant::half_pi.

◆ Spherical() [3/4]

supernovas::Spherical::Spherical	(	const Angle &	longitude,
		const Angle &	latitude )

Instantiates new spherical coordinates with the specified components.

Parameters

longitude	longitude coordinate
latitude	latitude coordinate

References Spherical(), latitude(), and longitude().

◆ Spherical() [4/4]

supernovas::Spherical::Spherical	(	const std::string &	lon,
		const std::string &	lat )

Instantiates spherical coordinates with the specified string representations of the longitude and latitude coordinates, optionally specifying a system and a distance if needed.

After instantiation, you should check that the resulting coordinates are valid, e.g. as:

Spherical coords = Spherical(..., ...);
if(!coords.is_valid()) {
  // oops, looks like the angles could not be parsed...
  return;
}

Parameters

lon	string representation of the longitude coordinate in DMS or a decimnal degrees.
lat	string representation of the declination coordinate as DMS or decimal degrees.

See also: novas_str_degrees() for details on string representation that can be parsed.; novas_parse_degrees() for more managed parsing from strings.

References Spherical().

Member Function Documentation

◆ distance_to()

Angle supernovas::Spherical::distance_to ( const Spherical & other ) const

protected

Returns the angular distance of these spherical coordiantes to/from the specified other spherical coordinates.

Parameters

other the reference spherical coordinates

Returns: the angular distance of these coordinates to/from the argument.

References Spherical(), supernovas::Angle::deg(), supernovas::Unit::deg, supernovas::Validating::is_valid(), and novas_sep().

Referenced by supernovas::Ecliptic::distance_to(), supernovas::Equatorial::distance_to(), supernovas::Galactic::distance_to(), supernovas::Horizontal::distance_to(), and equals().

◆ equals()

bool supernovas::Spherical::equals	(	const Spherical &	other,
		double	precision ) const

inlineprotected

References Spherical(), distance_to(), and supernovas::Angle::rad().

Referenced by supernovas::Ecliptic::equals(), supernovas::Equatorial::equals(), supernovas::Galactic::equals(), and supernovas::Horizontal::equals().

◆ latitude()

const Angle & supernovas::Spherical::latitude ( ) const

Returns the latitude coordinate as an angle.

Returns: the reference to the latitude coordinate stored internally.

See also: longitude(), distance()

Referenced by supernovas::Ecliptic::Ecliptic(), supernovas::Ecliptic::Ecliptic(), supernovas::Galactic::Galactic(), supernovas::Galactic::Galactic(), Spherical(), supernovas::Equatorial::dec(), supernovas::Horizontal::elevation(), supernovas::Orbital::pole(), supernovas::OrbitalSystem::pole(), supernovas::Horizontal::to_apparent(), supernovas::Ecliptic::to_equatorial(), supernovas::Galactic::to_equatorial(), supernovas::Equatorial::to_galactic(), supernovas::Horizontal::to_refracted(), supernovas::Horizontal::to_unrefracted(), and supernovas::Horizontal::zenith_angle().

◆ longitude()

const Angle & supernovas::Spherical::longitude ( ) const

Returns the longitude coordinate as an angle.

Returns: the reference to the longitude coordinate stored internally.

See also: latitude(), distance()

Referenced by supernovas::Ecliptic::Ecliptic(), supernovas::Ecliptic::Ecliptic(), supernovas::Galactic::Galactic(), supernovas::Galactic::Galactic(), Spherical(), supernovas::Horizontal::azimuth(), supernovas::Orbital::pole(), supernovas::OrbitalSystem::pole(), supernovas::Equatorial::ra(), supernovas::Horizontal::to_apparent(), supernovas::Ecliptic::to_equatorial(), supernovas::Galactic::to_equatorial(), supernovas::Equatorial::to_galactic(), supernovas::Horizontal::to_refracted(), and supernovas::Horizontal::to_unrefracted().

◆ to_string()

std::string supernovas::Spherical::to_string	(	enum novas_separator_type	separator = NOVAS_SEP_UNITS_AND_SPACES,
		int	decimals = 3 ) const

virtual

Returns a string representation of these spherical coordinates in DMS format, optionally specifying the type of separator to use and the precision to print.

Parameters

separator	(optional) the type of separators to use for the DMS representations of the components (default: units and spaces).
decimals	(optional) the number of decimal places to print for the seconds (default: 3)
