supernovas::Vector Class Reference

A generic 3D spatial vector, expressed in arbitrary units. More...

#include <supernovas.h>

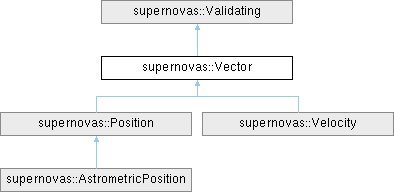

Inheritance diagram for supernovas::Vector:

Public Member Functions
virtual	~Vector ()
const double *	_array () const
	Returns the underlying double[3] C array that stores the components of this vector internally.
double	abs () const
	Returns the absolute value (length / magnitude) of this vector.
double	dot (const Vector &v) const
	Returns the dot product of this vector and the specified other vector.
bool	is_zero () const
	Checks if this verctor is a null vector, that is all of its components are zero.
Vector	operator* (double r) const
	Scales a vector by a factor, for example to cast it to/from a physical unit.
double	operator[] (int idx) const
	Returns the component at the specified index.
Angle	phi () const
	Returns the azumithal angle of this vector.
double	projection_on (const Vector &v) const
	Returns the projection of this vector along the direction of another vector.
Vector	scaled (double factor) const
	Returns a rescaled version of this vector, for example to cast it to/from a physical unit.
Angle	theta () const
	Returns the polar angleof this vector, that is the angle from the z axis.
virtual std::string	to_string (int decimals=3) const
	Returns a string representation of this vector.
Vector	unit_vector () const
	Returns a unit vector in the direction of this vector.
double	x () const
	Returns the x component of this vector.
double	y () const
	Returns the y component of this vector.
double	z () const
	Returns the z component of this vector.
Public Member Functions inherited from supernovas::Validating
bool	is_valid () const
	Returns the previously set 'valid' stae of the implementing instance.
	operator bool () const
	Objects that implement Validating can be used in conditionals directly, without explicitly calling is_valid().

Protected Member Functions
	Vector ()
	Instantiates an undefined vector.
	Vector (double x, double y, double z)
	Instantiates a vector from its cartesian components.
bool	equals (const Vector &v, double precision) const
	Checks if this vector is the same as another vector, within the specified precision.
Protected Member Functions inherited from supernovas::Validating
	Validating ()
	dummy constructor;

Protected Attributes
double	_component [3]
	[arb.u] Array containing the x, y, z components.
Protected Attributes inherited from supernovas::Validating
bool	_valid = false
	the state variable.

Detailed Description

A generic 3D spatial vector, expressed in arbitrary units.

See also

Position, Velocity

Constructor & Destructor Documentation

Vector() [1/2]

supernovas::Vector::Vector ( )

protected

Instantiates an undefined vector.

References _component.

Referenced by supernovas::Position::Position(), supernovas::Position::Position(), supernovas::Position::Position(), supernovas::Velocity::Velocity(), supernovas::Velocity::Velocity(), dot(), equals(), operator*(), projection_on(), scaled(), and unit_vector().

Vector() [2/2]

supernovas::Vector::Vector ( double x, double y, double z )

explicitprotected

Instantiates a vector from its cartesian components.

Parameters

x	[arb.u.] x component
y	[arb.u.] y component
z	[arb.u.] z component

References _component, supernovas::Validating::_valid, abs(), x(), y(), and z().

~Vector()

virtual supernovas::Vector::~Vector ( )

inlinevirtual

Member Function Documentation

_array()

const double * supernovas::Vector::_array

(

)

const

Returns the underlying double[3] C array that stores the components of this vector internally.

Such an array may be used with the SuperNOVAS C functions.

Returns

the uderlying double[3] array that stores the components of this vector.

References _component.

Referenced by supernovas::GeodeticObserver::GeodeticObserver(), supernovas::SolarSystemObserver::SolarSystemObserver(), supernovas::AstrometricPosition::as_equatorial(), supernovas::Site::enu_to_itrs(), supernovas::Site::enu_to_itrs(), supernovas::ScalarVelocity::in_direction(), supernovas::Site::itrs_to_enu(), and supernovas::Site::itrs_to_enu().

abs()

double supernovas::Vector::abs

(

)

const

Returns the absolute value (length / magnitude) of this vector.

Returns

the absolute value (length / magnitude) of this vector.

References _component, and novas_vlen().

Referenced by Vector(), supernovas::Velocity::Velocity(), supernovas::Position::distance(), supernovas::ScalarVelocity::in_direction(), supernovas::Position::operator==(), projection_on(), supernovas::Velocity::speed(), and unit_vector().

dot()

double supernovas::Vector::dot

(

const Vector &

v

)

const

Returns the dot product of this vector and the specified other vector.

Parameters

v	the other vector

Returns

the dot product of this vector and the argument.

References Vector(), and _component.

Referenced by projection_on().

equals()

bool supernovas::Vector::equals ( const Vector & v, double precision ) const

protected

Checks if this vector is the same as another vector, within the specified precision.

Parameters

v	the reference vector
precision	precision for the equality test

Returns

true if this vector is equal to the argument within the specified precision, or else false.

References Vector(), and _component.

Referenced by supernovas::Position::equals(), and supernovas::Velocity::equals().

is_zero()

bool supernovas::Vector::is_zero

(

)

const

Checks if this verctor is a null vector, that is all of its components are zero.

Returns

true if this is a null vector, with all components being zero; or else false.

References _component.

Referenced by supernovas::GeocentricObserver::to_string(), supernovas::GeodeticObserver::to_string(), and supernovas::SolarSystemObserver::to_string().

operator*()

Vector supernovas::Vector::operator*

(

double

r

)

const

Scales a vector by a factor, for example to cast it to/from a physical unit.

Parameters

r	scaling factor on the right-hand side

Returns

a new vector that is the rescaled version of this vector.

See also

operator/()

References Vector(), supernovas::Validating::is_valid(), and scaled().

operator[]()

double supernovas::Vector::operator[]

(

int

idx

)

const

Returns the component at the specified index.

Parameters

idx	[0:2] The 0-based coordinate index.

Returns

The component value at that index, or else NAN if the index is out of the [0:2] (errno will be set to ERANGE).

References _component.

phi()

Angle supernovas::Vector::phi

(

)

const

Returns the azumithal angle of this vector.

Returns

the azimuthal angle φ.

See also

theta()

References _component, and supernovas::Validating::is_valid().

projection_on()

double supernovas::Vector::projection_on

(

const Vector &

v

)

const

Returns the projection of this vector along the direction of another vector.

Parameters

v	the other vector

Returns

the projection of this vector along the direction of the argument vector.

References Vector(), abs(), and dot().

scaled()

Vector supernovas::Vector::scaled

(

double

factor

)

const

Returns a rescaled version of this vector, for example to cast it to/from a physical unit.

Parameters

factor

scaling factor, such as a cast to/from a physical unit

Returns

a new vector that is the rescaled version of this vector with the specified scaling factor.

References Vector(), _component, and supernovas::Validating::is_valid().

Referenced by supernovas::GeodeticObserver::GeodeticObserver(), supernovas::SolarSystemObserver::SolarSystemObserver(), operator*(), and unit_vector().

theta()

Angle supernovas::Vector::theta

(

)

const

Returns the polar angleof this vector, that is the angle from the z axis.

Returns

the polar angle θ.

See also

phi()

References _component, and supernovas::Validating::is_valid().

to_string()

std::string supernovas::Vector::to_string ( int decimals = 3 ) const

virtual

Returns a string representation of this vector.

Parameters

decimals

(optional) the numberof decimal places to print for the components (default: 3).

Returns

Reimplemented in supernovas::AstrometricPosition, supernovas::Position, and supernovas::Velocity.

References _component.

unit_vector()

Vector supernovas::Vector::unit_vector

(

)

const

Returns a unit vector in the direction of this vector.

Returns

a new unit vector in the same direction as this vector.

References Vector(), abs(), supernovas::Validating::is_valid(), and scaled().

x()

double supernovas::Vector::x

(

)

const

Returns the x component of this vector.

Returns

the x component

See also

y(), z()

References _component.

Referenced by Vector(), supernovas::Position::operator+(), supernovas::Velocity::operator+(), supernovas::Position::operator-(), supernovas::Velocity::operator-(), supernovas::Position::to_string(), supernovas::Velocity::to_string(), and supernovas::Velocity::travel().

y()

double supernovas::Vector::y

(

)

const

Returns the y component of this vector.

Returns

the y component

See also

x(), z()

References _component.

Referenced by Vector(), supernovas::Position::operator+(), supernovas::Velocity::operator+(), supernovas::Position::operator-(), supernovas::Velocity::operator-(), supernovas::Position::to_string(), supernovas::Velocity::to_string(), and supernovas::Velocity::travel().

z()

double supernovas::Vector::z

(

)

const

Returns the z component of this vector.

Returns

the z component

See also

x(), y()

References _component.

Referenced by Vector(), supernovas::Position::operator+(), supernovas::Velocity::operator+(), supernovas::Position::operator-(), supernovas::Velocity::operator-(), supernovas::Position::to_string(), supernovas::Velocity::to_string(), and supernovas::Velocity::travel().

Member Data Documentation

_component

double supernovas::Vector::_component[3]

protected

[arb.u] Array containing the x, y, z components.

Referenced by Vector(), Vector(), _array(), abs(), dot(), equals(), supernovas::Position::inv(), supernovas::Velocity::inv(), is_zero(), supernovas::Position::operator/(), operator[](), phi(), scaled(), theta(), supernovas::Position::to_spherical(), to_string(), x(), y(), and z().
